Archer Air R5
AX3000 Dual-Band Wi-Fi 6 Air Router
- Next-Gen Gigabit Wi-Fi 6 Speed—2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz band ensure smoother streaming and faster downloads.1

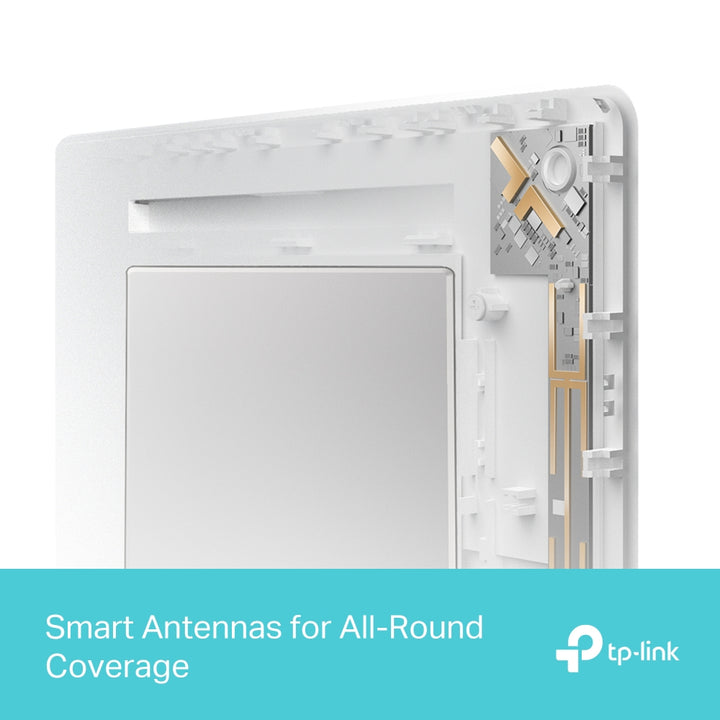

- Smart Antennas – Uses intelligent algorithms to auto-detect your devices’ locations and adjust antennas’ direction for all-round stable signals.
- Ultra-Low Latency—Enables more responsive gaming and video chatting.
- TP-Link HomeShield - Enhanced security defends against the latest cyber threats.
- EasyMesh-Compatible - Works with EasyMesh-compatible routers to create a whole home seamless mesh network.3

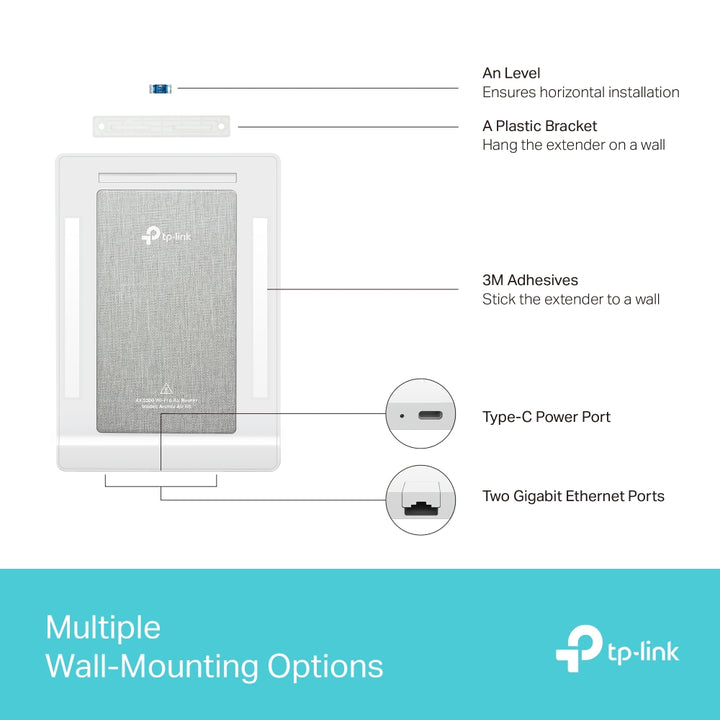

- Flexible Installation – Easy to stick or mount on the wall with 3M adhesives and the attached plastic bracket.
| WIRELESS | |
|---|---|
| Standards |
Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz |
| WiFi Speeds |
AX3000 5 GHz: 2402 Mbps (802.11ax, HE160) 2.4 GHz: 574 Mbps (802.11ax) |
| WiFi Range |
3 Bedroom Houses Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range High-Power FEM Improves transmission power to strengthen signal coverage |
| WiFi Capacity |
High Dual-Band Allocate devices to different bands for optimal performance OFDMA Simultaneously communicates with multiple Wi-Fi 6 clients Airtime Fairness Improves network efficiency by limiting excessive occupation 4 Streams Connect your devices to more bandwidth |
| Working Modes | Router Mode AP Mode |
| SECURITY | |
|---|---|
| Network Security |
HomeShield Security Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner |
| Guest Network | 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
| VPN Server | PPTP ServerN OpenVPN ServerN |
| WiFi Encryption | WPA/WPA2 WPA3 WPA/WPA2-PSK |
| HARDWARE | |
|---|---|
| Ethernet Ports | 1× Gigabit WAN Port 1× Gigabit LAN Port |
| Buttons | WPS Button Reset Button |
| SOFTWARE | |
|---|---|
| Protocols | IPv4 IPv6 |
| Service Kits | HomeShield Learn More> |
| EasyMesh | Mesh networking creates smooth, fast, stable roaming. Archer Air R5 can build an EasyMesh network with devices that use EasyMesh technology. Eliminate Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi. Learn More about EasyMesh> |
| Parental Controls |
HomeShield Parental Controls Custom Profiles Professional Content Filter Library Family Time Bedtime Off Time Time Rewards Family Online Time Ranking Pause the Internet Weekly and Monthly Reports |
| WAN Types | Dynamic IP Static IP PPPoE PPPoE + Dynamic IP PPPoE + Static IP L2TP + Dynamic IP L2TP + Static IP PPTP + Dynamic IP PPTP + Static IP |
| Quality of Service | QoS by Device |
| Cloud Service | FOTA Firmware Upgrade TP-Link ID DDNS |
| NAT Forwarding | Port Fowarding Port Triggering DMZ UPnP |
| IPTV | Profile Bridge Custom Allowed range of VLAN ID |
| DHCP | DHCP Server Address Reservation DHCP Client List |
| DDNS | TP-Link NO-IP DynDNS |
| Management | Tether App Webpage Check Web Emulator> |
| OTHER | |
|---|---|
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
| Certifications | FCC, CE, RoHS |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40~60℃ Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% |
| TEST DATA | |
|---|---|
| WiFi Transmission Power | CE: <20dBm(2.4GHz) <23dBm(5.15GHz~5.35GHz) <30dBm(5.47GHz~5.725GHz) FCC: <30dBm(2.4GHz & 5.15GHz~5.825GHz) |
| WiFi Reception Sensitivity | 5GHz-band1: 11a 6Mbps:-97dBm 11a 54Mbps:-78dBm 11ac HT20 MCS8:-74dBm 11ac HT40 MCS9:-69dBm 11ac HT80 MCS9:-65dBm 11ax HE20 MCS0: -97dBm 11ax HE20 MCS11: -66dBm 11ax HE40 MCS0: -94dBm 11ax HE40 MCS11: -63dBm 11ax HE80 MCS0: -91dBm 11ax HE80 MCS11: -60dBm 5GHz-band2: 11a 6Mbps:-97dBm 11a 54Mbps:-78dBm 11ac HT20 MCS8:-74dBm 11ac HT40 MCS9:-69dBm 11ac HT80 MCS9:-65dBm 11ax HE20 MCS0: -97dBm 11ax HE20 MCS11: -66dBm 11ax HE40 MCS0: -94dBm 11ax HE40 MCS11: -63dBm 11ax HE80 MCS0: -91dBm 11ax HE80 MCS11: -60dBm 11ax HE160 MCS0: -88dBm 11ax HE160 MCS11: -58dBm 5GHz-band3: 11a 6Mbps:-97dBm 11a 54Mbps:-78dBm 11ac HT20 MCS8:-74dBm 11ac HT40 MCS9:-69dBm 11ac HT80 MCS9:-65dBm 11ax HE20 MCS0: -97dBm 11ax HE20 MCS11: -66dBm 11ax HE40 MCS0: -94dBm 11ax HE40 MCS11: -63dBm 11ax HE80 MCS0: -91dBm 11ax HE80 MCS11: -60dBm 11ax HE160 MCS0: -88dBm 11ax HE160 MCS11: -58dBm 2.4GHz: 11g 6Mbps:-96dBm 11g 54Mbps:-78dBm 11n HT20 MCS7:-76dBm 11n HT40 MCS7:-72dBm 11ax HE20 MCS0: -95dBm 11ax HE20 MCS11: -65dBm 11ax HE40 MCS0: -93dBm 11ax HE40 MCS11: -62dBm |
| PHYSICAL | |
|---|---|
| Dimensions (W×D×H) | 8.3 × 5.5 × 0.4 in (210 × 140 × 10.8 mm) |

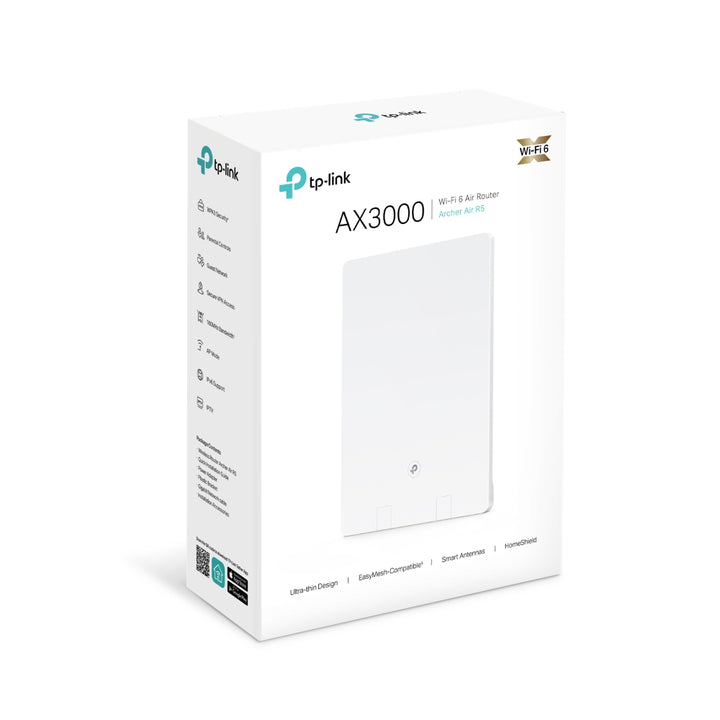

| Package Contents | Wireless Router Archer Air R5 Quick Installation Guide Power Adapter Plastic Bracket Gigabit Network Cable Installation Accessories |
