The Next Generation --- Wi-Fi 6 |
|
Wi-Fi 6 (IEEE802.11ax) delivers a huge boost in speed and total capacity and takes your Wi-Fi to the next level while being backwards compatible with IEEE802.11a/b/g/n/ac Wi-Fi standards. X2000R equips with the latest wireless technology, Wi-Fi 6, for faster speeds, greater capacity, and reduced network congestion. |
|
Four External Antennas, Wide Wi-Fi Coverage |
|
Four external high-performance antennas and Beamforming technology focus signal towards individual clients for broader coverage. |
|
Adaptive WAN/LAN Ports |
|
The router no longer differentiates between WAN (dial-up port) and LAN (Internet access port), but adopts an adaptive WAN/LAN. Users can connect the Internet access line to any network ports to surf the Internet. |
|
MU-MIMO Technology |
|
Latest MU-MIMO technology supports to connect with multiple devices at the same time and each device enjoys high internet speed separately. |
|
Hardware |
|
|
Interface |
- 4 * 10/100/1000Mbps LAN Ports - 1 * 10/100/1000Mbps WAN Port |
|
Power Supply |
- 12V DC/1A |
| Button |
- 1 * RST/WPS Button |
| Antenna |
- 2 * 2.4GHz fixed antennas(5dBi) - 2 * 5GHz fixed antennas(5dBi) |
| LED Indicators |
- 1 *SYS, 1 *WAN, 4 *LAN |
|
Dimensions (L x W x H) |
- 206 x 121 x 41mm |
|
Wireless |
|
|
Standards |
- IEEE 802.11ax, IEEE 802.11ac, IEEE 802.11n, - IEEE 802.11g, IEEE 802.11b, IEEE 802.11a |
|
RF Frequency |
- 2.4GHz/5GHz |
| Data Rate |
- 2.4GHz: Up to 300Mbps - 5GHz: Up to 1201Mbps |
| EIRP |
- 2.4GHz < 20dBm - 5GHz < 20dBm |
|
Wireless Security |
- 64/128-bit WEP, WPA, WPA2 and WPA-Mixed - WPA3 |
|
Reception Sensitivity |
- 2.4G: 11b 11M：-81dBm@8% PER 11g 54M：-68dBm@10% PER 11n HT20 MCS7：-65dBm@10% PER HT40 MCS7：-62dBm@10% PER - 5G: 11a 54M：-68dBm@10% PER 11n HT20 MCS7：-65dBm@10% PER HT40 MCS7：-62dBm@10% PER 11ac VHT80 MCS9：-51dBm@10% PER 11ax HE80 MCS11：-46dBm@10% PER |
|
Software |
|
|
Operation Mode |
- Gateway Mode - Repeater Mode - AP Mode - WISP Mode |
|
Status |
- WAN - Wireless - LAN - System Information |
|
Network |
- WAN Setting - LAN Setting - IPTV Setting - DHCP&ARP Tables - Static Route - Routing Table |
|
Mesh setting |
- Optional master device and slave device |
|
WAN Type |
- Static IP, DHCP, PPPoE/Russia PPPoE, PPTP/Russia PPTP, L2TP/Russia L2TP |
|
IPv6 Protocol |
- DHCP/Static IP/PPPoE |
|
Wireless |
- Basic Settings - Guest network - Advanced Settings - Access Control - Wireless Schedule |
|
QoS |
- Up/Down speed control on WAN, - Bandwidth control based on IP address |
|
Security |
- IP/Port Filtering - MAC Filtering - URL Filtering |
|
NAT |
- Virtual Server(Port Forwarding) - DMZ - VPN Passthrough |
|
System |
- Upgrade Firmware - Save/Reload Settings - Time Zone Settings - DDNS - Denial-of-Service - TR-069 Config - Password Settings - Reboot Schedule - System Log - Statistics - Run Command - Logout |
|
Others |
|
|
Package Contents |
- X2000R Wireless Router * 1 - Power Adapter * 1 - Ethernet Cable * 1 - Quick Installation Guide * 1 |
|
Environment |
- Operating Temperature: 0℃~40 ℃ (32 ℉~104℉) - Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉) - Operating Humidity: 10%~90% non-condensing - Storage Humidity: 5%~90% non-condensing |
|
IPTV Function |
|
IPTV is one of the most useful features in X2000R, which allows to enjoy online movies at home, greatly improving the users’experience on Multi-media. |
|
Band Steering |
|
Band Steering function enable the router transmits two band signals by the same SSID. According to the real-time Internet rate of the terminal, it can choose the band with higher speed and less interference for users intelligently. It have features that steers wireless devices(dual-band capable) to connect to the faster 5GHz Wi-Fi and it can reduce congestion of 2.4GHz Wi-Fi for those devices who support 2.4GHz only. Therefore, Band Steering not only gives full play to the advantage of multi-band but also improves the user's experience.
|
|

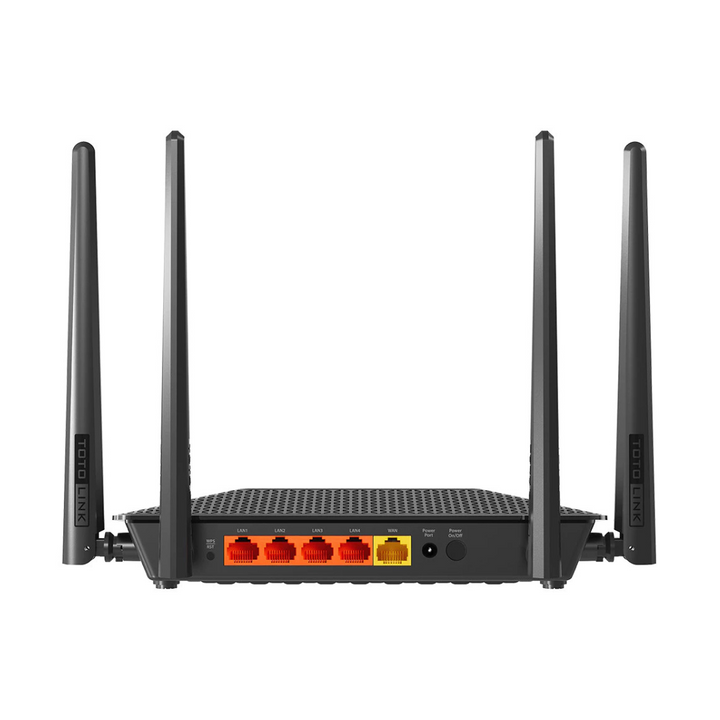

Gigabit WAN and LAN Ports |
|
One Gigabit WAN and four Gigabit LAN ports offer a larger capability for data streaming via cable connection, delivering a super-fast Internet speed and offering Internet experience as connecting with a high-speed fiber, ideal for users subscribing a bandwidth of 200Mbps or above. |
|

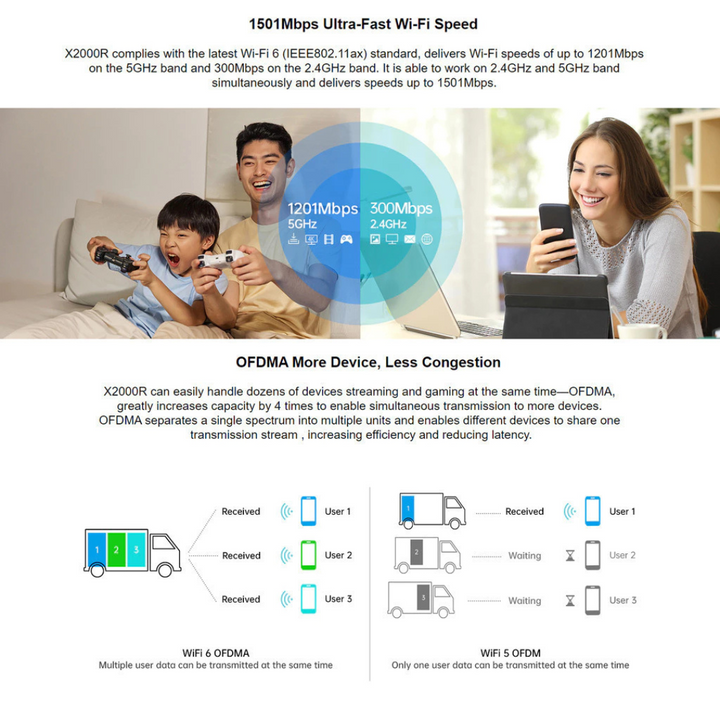

1501Mbps Ultra-Fast Wi-Fi Speed |
|
X2000R complies with the latest Wi-Fi 6 (IEEE802.11ax) standard, delivers Wi-Fi speeds of up to 1201Mbps on the 5GHz band and 300Mbps on the 2.4GHz band. It is able to work on 2.4GHz and 5GHz band simultaneously and delivers speeds up to 1501Mbps. |
|
OFDMA More Device, Less Congestion |
|
X2000R can easily handle dozens of devices streaming and gaming at the same time—OFDMA, greatly increases capacity by 4 times to enable simultaneous transmission to more devices. OFDMA separates a single spectrum into multiple units and enables different devices to share one transmission stream , increasing efficiency and reducing latency.
|
|
Easy Mesh, Seamless roaming throughout the house |
|
EasyMesh is a simple way to form a Mesh network with a single Wi-Fi name for seamless whole-home coverage. When you move at home, the device will automatically switch between X2000R to achieve seamless roaming. |
