Features
• Easy-to-use cable
• No software required
• Active DisplayPort™ conversion
• Easy installation
• Compliant with DisplayPort™ v1.2
• Compliant with HDMI™ 1.4a specifications- up to 3 Gbps
• Supports resolutions up to 4K Ultra HD (4096 x 2160 @ 60Hz) and 3D video formats over HDMI™
• Supports Audio
• Features are subject to the capabilities of the computer and graphics card solution
Interface
Host Interface
✅DisplayPort™ Male Connector
Video & Audio Interface
✅HDMI Female Connector
Converter Type
✅Active
System requirements
✅Available DisplayPort™ 1.2
✅The maximum resolution for DisplayPort™ 1.1a is 2560 x 1200
📦Package Contents📦
1x JDA158 DisplayPort™ to 4K HDMI Active Adapter
1x Quick Installation Guide
Features
• DisplayPort™ 1.2 compliant
• HDMI™ 1.4b compliant
• Supports up to 4K x 2K & 3D video formats over HDMI™
• DP++ Dual-Mode DisplayPort™ cable
• Supports audio
• Cable length 6ft / 1.8m
Interface
Host Interface:
✅DisplayPort™ (20 Pin) Male Input
Video & Audio Interface:
✅HDMI (19 pin) Male OutputConverter Type
Passive
📦Package Contents📦
✅ JDC158 4K HDMI DisplayPort™ Cable
✅ Quick Installation Guide
Input:
✅USB™ Type-A 3.0 and mini DisplayPort™ male connector
Output
✅HDMI™ female connector x 1
✅mini DisplayPort™ female connector x 1
✅Gigabit Ethernet RJ-45 female connector
✅USB-C™ 3.1 Gen1 port female connector x 1
✅USB™ Type-A 3.0 port female connector x 2
Memory card reader/writer female
Functions
Display:
✅HDMI™ display resolution: 3840 x 2160 @ 30 Hz
✅mini DisplayPort™ resolution: 3840 x 2160 @ 60 Hz
✅(only one output is supported at once)
USB™:
✅USB-C™ Type-A 3.1 port x 1 (USB™ 3.1 Gen 1/5 Gbps)
✅USB™ Type-A 3.0 port x2 (USB™ 3.0, 5 Gbps)
Ethernet:
✅Transfer Rate: 1000 Mbps (Half Duplex)/1000 Mbps (Full Duplex)
✅IEEE: IEEE 802.3az, IEEE 802.3, 802.3u, and 802.3ab, IEEE 802.3x
Memory:
✅SD™/microSD™ 3.0 memory card reader/writer
Power Mode:
✅BUS-Powered
📦Package Contents📦

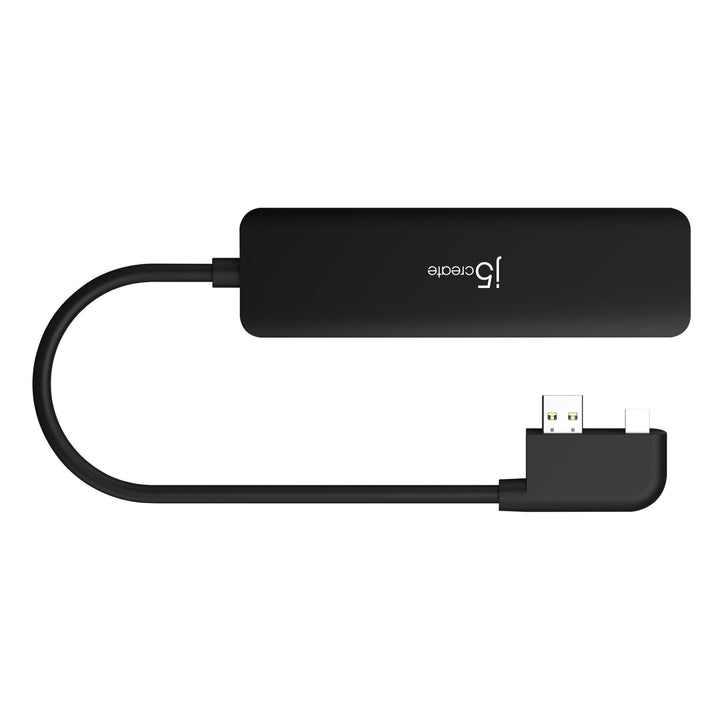

• ULTRADRIVEMINIDOCK™ for Surface™ Pro (JDD321B/JDD321S)
• Quick Installation Guide
